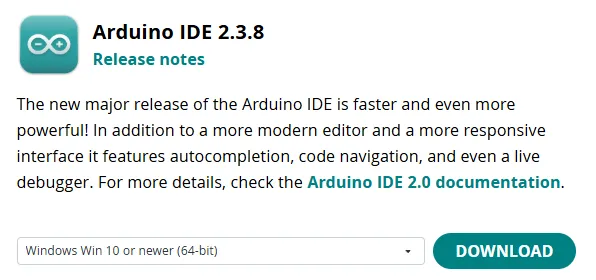

IDE下载及配置

https://www.arduino.cc/en/software/

C:\Users\<你的用户名>\.arduinoIDE\.clang-format

BreakBeforeBraces: Allman
IndentWidth: 4

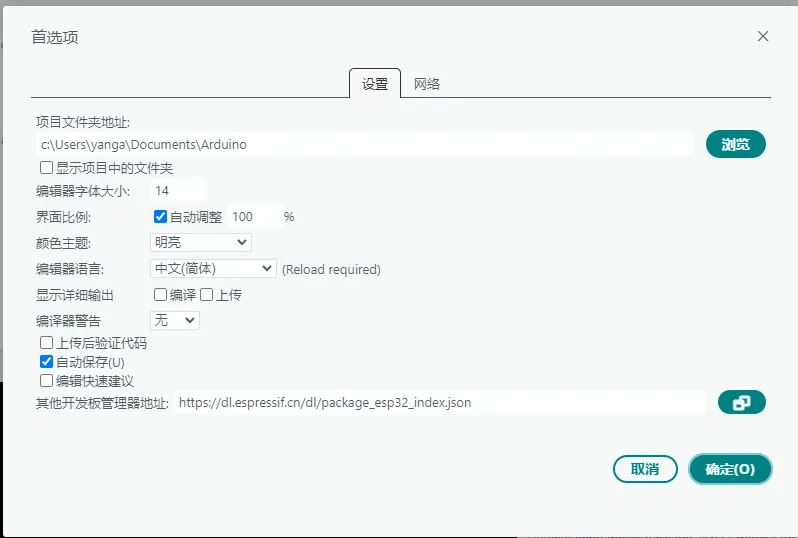

安装ESP32开发包，文件-> 首选项->附加开发板管理器 输入

https://dl.espressif.cn/dl/package_esp32_index.json

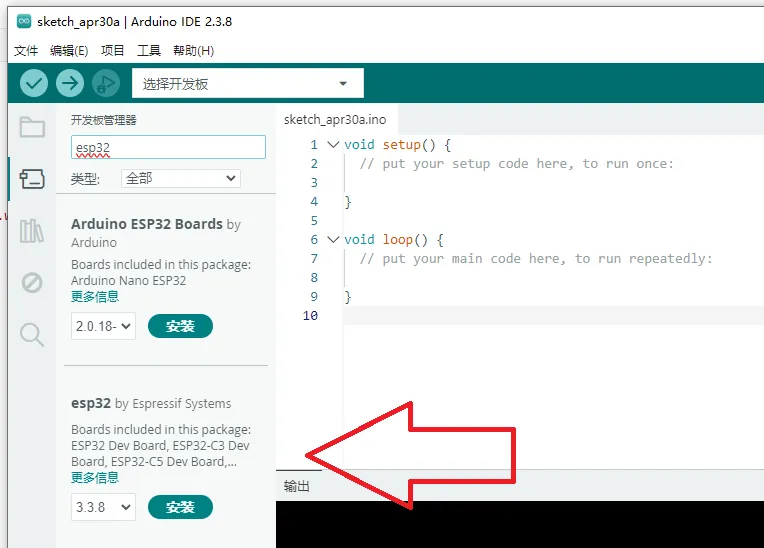

工具-> 开发板->开发板管理器，搜索ESP32下载

选择开发板

代码

#include "esp_camera.h"
#include "esp_system.h"
#include <WiFi.h>
#include <WiFiUdp.h> // 1. 引入 UDP 通信库

// ================= 需要修改的配置 =================
const char *ssid = "kellermen";
const char *password = "kellermen";

const char *tcpServerIP = "62.234.17.134";
const int tcpServerPort = 2007;
char customFileName[32]; // 长度可变的特定字符串

const char *udpServerIP = "62.234.17.134"; // 目标IP地址
const int udpServerPort = 2000;            // 目标端口号

const uint8_t updata_maxtime = 10;
const int max_wait_time = 5;
const int ioPin = 13;
// ================================================

WiFiUDP Udp; // 2. 创建 WiFiUDP 对象
// ================================================

// 摄像头引脚定义（AI-Thinker 模组）
#define PWDN_GPIO_NUM 32
#define RESET_GPIO_NUM -1
#define XCLK_GPIO_NUM 0
#define SIOD_GPIO_NUM 26
#define SIOC_GPIO_NUM 27
#define Y9_GPIO_NUM 35
#define Y8_GPIO_NUM 34
#define Y7_GPIO_NUM 39
#define Y6_GPIO_NUM 36
#define Y5_GPIO_NUM 21
#define Y4_GPIO_NUM 19
#define Y3_GPIO_NUM 18
#define Y2_GPIO_NUM 5
#define VSYNC_GPIO_NUM 25
#define HREF_GPIO_NUM 23
#define PCLK_GPIO_NUM 22

WiFiClient client;

void setup()
{
    Serial.begin(115200);

    // 连接WiFi
    WiFi.begin(ssid, password);
    Serial.print("正在连接WiFi");
    while (WiFi.status() != WL_CONNECTED)
    {
        delay(500);
        Serial.print(".");
    }
    uint32_t chipId = 123456;
    for (int i = 0; i < 17; i = i + 8)
    {
        chipId |= ((ESP.getEfuseMac() >> (40 - i)) & 0xff) << i;
    }

    snprintf(customFileName, sizeof(customFileName), "CAM_%08lu", chipId);
    Serial.printf("生成的动态文件名为: %s\n", customFileName);
    Serial.println("\nWiFi连接成功！");
    Serial.print("ESP32-CAM的IP地址: ");
    Serial.println(WiFi.localIP());

    // 初始化摄像头
    camera_config_t config;
    config.ledc_channel = LEDC_CHANNEL_0;
    config.ledc_timer = LEDC_TIMER_0;
    config.pin_d0 = Y2_GPIO_NUM;
    config.pin_d1 = Y3_GPIO_NUM;
    config.pin_d2 = Y4_GPIO_NUM;
    config.pin_d3 = Y5_GPIO_NUM;
    config.pin_d4 = Y6_GPIO_NUM;
    config.pin_d5 = Y7_GPIO_NUM;
    config.pin_d6 = Y8_GPIO_NUM;
    config.pin_d7 = Y9_GPIO_NUM;
    config.pin_xclk = XCLK_GPIO_NUM;
    config.pin_pclk = PCLK_GPIO_NUM;
    config.pin_vsync = VSYNC_GPIO_NUM;
    config.pin_href = HREF_GPIO_NUM;
    config.pin_sscb_sda = SIOD_GPIO_NUM;
    config.pin_sscb_scl = SIOC_GPIO_NUM;
    config.pin_pwdn = PWDN_GPIO_NUM;
    config.pin_reset = RESET_GPIO_NUM;
    config.xclk_freq_hz = 20000000;
    config.pixel_format = PIXFORMAT_JPEG;
    config.frame_size = FRAMESIZE_VGA;
    config.jpeg_quality = 30;
    config.fb_count = 1;

    esp_err_t err = esp_camera_init(&config);
    if (err != ESP_OK)
    {
        Serial.printf("摄像头初始化失败: 0x%x", err);
        return;
    }
    sensor_t *s = esp_camera_sensor_get();

    // 开启垂直翻转和水平镜像，两者叠加即可实现 180 度旋转
    s->set_vflip(s, 1);   // 1 表示开启垂直翻转，0 表示关闭
    s->set_hmirror(s, 1); // 1 表示开启水平镜像，0 表示关闭

    Serial.println("摄像头初始化成功！");
    pinMode(ioPin, INPUT);
}
uint8_t cam_delay = 65500;
uint8_t updata_cnt = 0;
void loop()
{

    if (cam_delay < 65535)
    {
        cam_delay++;
    }
    if (updata_cnt < updata_maxtime)
    {
        updata_cnt++;
    }
    else
    {
        updata_cnt = 0;
        char sendtemp[200];
        snprintf(sendtemp, sizeof(sendtemp),
                 "#baotou#driveupdata#%s#door#m#p#o#0#1#2#3#4#5#6#7#8#9#",
                 customFileName);
        Udp.beginPacket(udpServerIP, udpServerPort);
        Udp.print(sendtemp); // 将 write 替换为 print
        Udp.endPacket();
        Serial.println("已发送 UDP 消息");
    }

    int state = digitalRead(ioPin);

    // 判断并打印结果
    if (state == HIGH)
    {
    }
    else
    {
        Serial.println("低电平");
        if (cam_delay > max_wait_time)
        {
            cam_delay = 0;
        }
        else
        {

            Serial.print(cam_delay);
            Serial.print("-");
            Serial.print(max_wait_time);
            Serial.println("放弃...");
            delay(1000);
            return;
        }

        // 拍照
        Serial.println("正在拍摄照片...");
        camera_fb_t *fb_old = esp_camera_fb_get();
        if (fb_old)
        {
            esp_camera_fb_return(fb_old); // 获取后直接释放
            delay(500); // 稍微给传感器一点缓冲时间
        }


        camera_fb_t *fb = esp_camera_fb_get();
        if (!fb)
        {
            Serial.println("拍照失败！");
            ESP.restart();

            return;
        }
        Serial.print("正在连接TCP服务器...");
        if (!client.connect(tcpServerIP, tcpServerPort))
        {
            Serial.println("连接失败，5秒后重试...");
            delay(5000);
            return;
        }
        Serial.println("连接成功！");

        // 1. 获取字符串长度，并先发送 1 个字节的长度信息
        uint8_t nameLen = strlen(customFileName);
        client.write(&nameLen, 1);
        Serial.printf("正在发送字符串长度: %d\n", nameLen);

        // 2. 发送特定字符串的内容
        Serial.printf("正在发送特定字符串: %s\n", customFileName);
        client.print(customFileName);

        // 3. 延时 1 秒 (1000毫秒)
        delay(1000);

        // 4. 发送JPEG图片的原始二进制数据
        size_t sentBytes = client.write(fb->buf, fb->len);
        Serial.printf("照片发送完成！实际发送图片数据: %d / %d bytes\n",
                      sentBytes, fb->len);

        // 释放摄像头缓冲区
        esp_camera_fb_return(fb);

        // 主动断开TCP连接
        client.stop();
        Serial.println("TCP连接已断开。\n");
        char sendtemp[200];
        snprintf(sendtemp, sizeof(sendtemp),
                 "#baotou#control#wechat#%s#data0#data1#data2#data3#data4#"
                 "data5#data6#data7#data8#data9#",
                 customFileName);
        Udp.beginPacket(udpServerIP, udpServerPort);
        Udp.print(sendtemp); // 将 write 替换为 print
        Udp.endPacket();
        Serial.println("已发送 UDP 消息");
    }

    delay(1000); // 等待1秒
}
